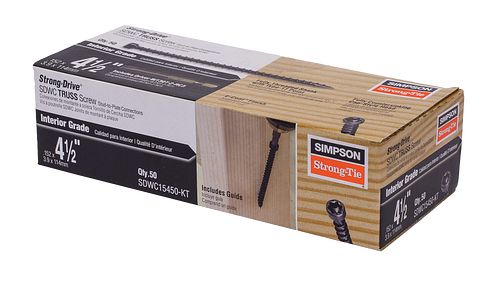

Simpson Strong-Drive® SDWC™ TRUSS Screw

Simpson Strong-Tie Company

Strong-Drive^® Interior Wood Screws

This product's information may differ depending on the category of use. You are currently viewing details related to Strong-Drive^® Interior Wood Screws. You can also view product information related to the category: Fasteners for the Quik Stik^™ System

The Strong-Drive SDWC Truss screw provides a stud-to-bottom plate or stud-to-top plate connection as well as fastening trusses and rafters to top plates. The fully-threaded shank engages the entire length of the fastener, providing a secure connection. The SDWC is tested in accordance with ICC-ES AC233 (screw) and AC13 (wall assembly and roof-to-wall assembly) for uplift and lateral loads between wall plates and vertical wall framing and between the top plate and the roof rafters or trusses. It is code listed under IAPMO-UES ER-262 and meets 2018 and 2021 IRC^® and IBC^® code requirements for most common wood framing applications.

Key Features

Fully threaded shank engages the entire length of the fastener, providing a secure connection between the roof and wall framing members
Cap-style head countersinks fully into the double top plate to avoid interference with drywall or finish trades
Wide tolerance on installation angle makes it easy to install the SDWC correctly
Can be installed from inside the structure, eliminating exterior work on the upper stories and enhancing job safety
6-lobe, T30 driver bit provides positive engagement that makes the screw easy to drive and improves bit life (replacement driver bit — BIT30T-2-R2)
Fastening can be performed before or after exterior sheathing is applied for added flexibility
Metal installation guide tool (included) to help ensure proper installation
Orange color for easy inspection
Type-17 point for faster starts and easier driving
SDWC15450 is recognized for use in chemically treated wood as described in the evaluation report

Applications

Truss/rafter-to-plate and stud-to-plate connections

Product Includes

SDWC15450-KT and SDWC15600-KT contain:

(50) Strong-Drive SDWC screws
(1) Matched-tolerance driver bit (part no. BIT30T-2-R2; also sold separately)
(1) Metal installation guide tool
- SDWC-GUIDE (for SDWC15600 only)

(500) Strong-Drive SDWC screws
(2) Matched-tolerance driver bits (part no. BIT30T-2-R2; also sold separately)
(2) Metal installation guide tools
- SDWC-GUIDE (for SDWC15600 only)
  or
- SDWC-GUIDE275 (for SDWC15450 only)
